typical application
????Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment,
Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.
main feature
????The stepping motor is subdivided and driven, with high precision and stable operation.
????The 3-digit LED digital tube displays the current speed, which is simple, intuitive and clear at a glance.
????The membrane button adjusts the speed, direction, start/stop, and the operation is simple and convenient; there is also a full-speed ????button for quick filling or emptying.
????With power-down memory function, power-on again after power-off, work according to the state before power-off.
????It can communicate with PC through RS485.
????It can be used with accessories such as sub-assembly controller, foot switch, external control module, etc. to realize small batch filling and distribution

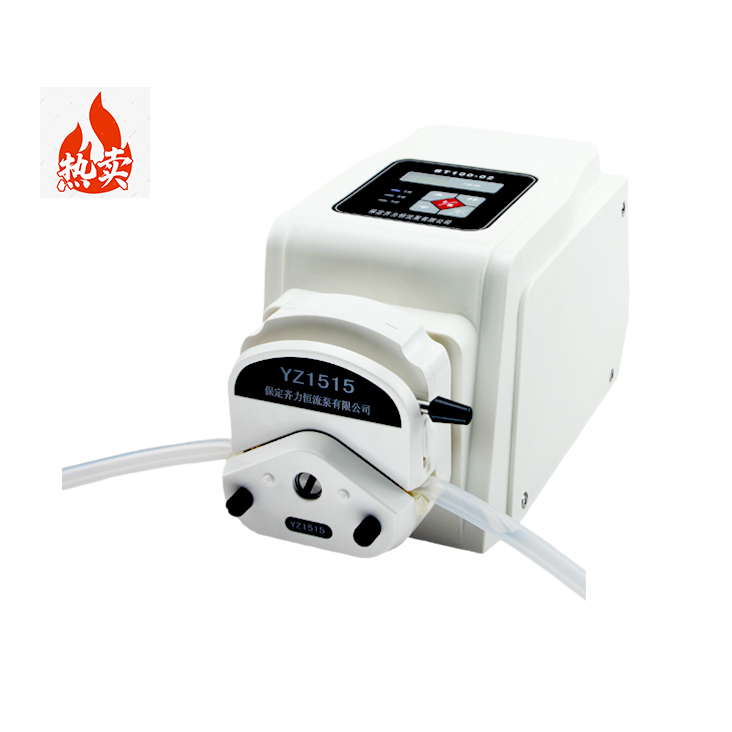

| BT100-02 technical indicators | |||
| range of rotation | 0.1～100 rpm | Speed resolution | 0.1 rpm |
| Display method | 3-digit digital tube | External control | 0-10kHz、0-5V、0-10V、4-20mA、RS485 |
| Speed adjustment method | Film button adjustment or external control adjustment | External control function | Speed control, direction control, start-stop control |
| Applicable power supply | AC 100V-240V | Power consumption | ＜35W |
| working environment | Temperature 0～40℃, relative humidity <80%, no condensation | Dimensions (L×W×H) | 191×105×138（mm） |
| Drive weight | 2.0kg | Protection level | IP31 |
| BT100-02 flow parameters | ||||
| Drive model | Applicable pump head | Applicable hose | Reference flow range (ml/min) | Number of channels |
| BT100-02 | YZ1515 | 13# 14# 16# 19# 17# 18# 25# | 0.007-380 | 1 |
| YZ2515 | 15# 24# | 0.17-270 | 1 | |
| DG-(1, 2, 4) 6 rollers | Wall thickness 0.8-1mm | Single channel 0.0025-48 | 1、2、4 | |
| DG-(1、2、4)10 rollers | Inner diameter≤3.17mm | Single channel 0.002-32 | 1、2、4 | |
