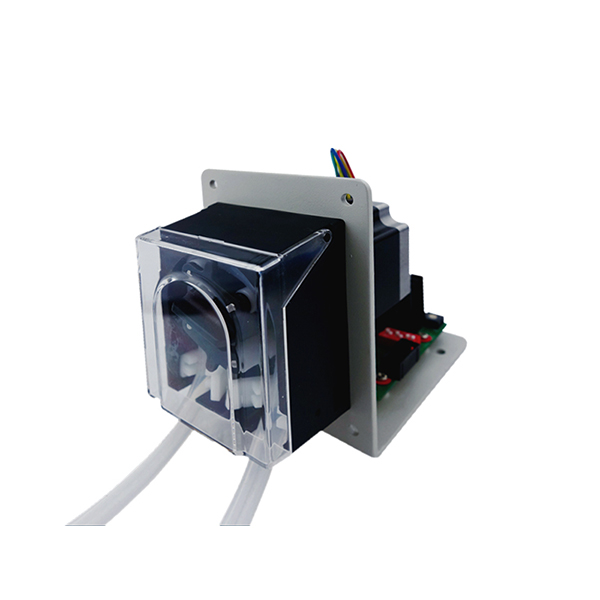

TS100-C peristaltic pump uses stepper motor subdivision drive, high precision, stable operation. It can be controlled internally or externally, and the switch value controls the start, stop and direction. Beautiful appearance, small size, simple and intuitive operation.
| range of rotation | ≤100rpm | Applicable power supply | DC24V |
| Internal control method | 5-100 step adjustment (see table 2 for details) | Power consumption | 20W |
| External control method | 0.1-100rpm, speed resolution 0.1rpm, full linear correspondence | working environment | Ambient temperature: 0-40℃, relative humidity: <80% |
| Start-stop control |
Contact: Normally open operation; closed to stop.
|
Dimensions | (Length × width × height) 131.8 × 80 × 110 (mm) |
| Direction control |
One-way transmission, no reverse operation
|
weight | 1000g |
| Drive model | Applicable pump head | Applicable hose | Flow range | Number of channels |
| TS100-C | TH15 | 16# | 0.8-80 | 1 |
| 25# | 1.8-180 |
